Heavy duty truck backup camera

Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Piece/Pieces
Delivery Time: 3 Days

Basic Info


Model No.: SA-A20M01K


Additional Info


Packaging: gift box

Productivity: 100000 Per week

Brand: Sanan

Transportation: Ocean,Land,Air,By express

Place of Origin: Shenzhen,China

Supply Ability: 200000

Certificate: ISO9001

HS Code: 8523501390

Port: Se Kou,Yan Tian


Product Description

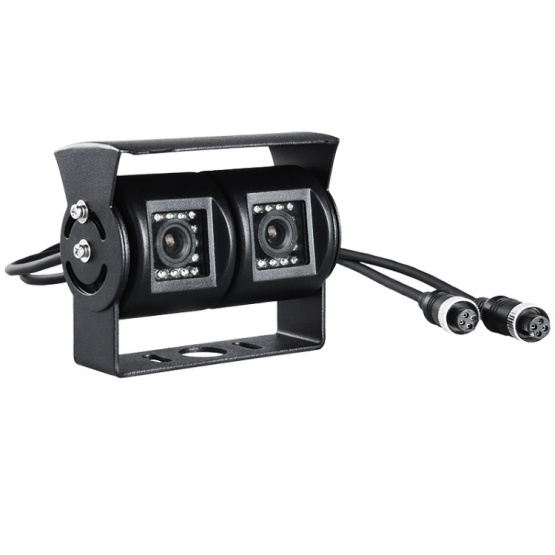

1080P Dual lens Heavy Duty Truck Backup CCTV Camera Night Vision



Vehicle System Solution Specifications

• Patent Regulator, Easy to Adjust, Reliable Application Scenario
• The higher the resolution, the clearer and more delicate the image.
• Low illumination, 0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Support ICR infrared filter type automatic switching, automatic color to black function, to achieve day and night monitoring
• Supporting automatic white balance function, high color restoration, vivid image
• Support backlight compensation function for foreground object monitoring in backlight environment
• Support SMART IR functionality
• High signal-to-noise ratio, clean and pleasant image
• Support automatic electronic shutter function to adapt to different monitoring environments
• Support automatic electronic gain function, brightness adaptation With advanced double-ring glass design, the image is clearer
• Suitable for in-car installation

Image sensor 1/2.7`` COMS
Signal System PAL/NTSC
Effective pixels PAL:1920(H)×1080(V) NTSC:1920(H)×1080(V)
Lens 2.8mm/ 3.6mm/ Customized optional
Minimum illumination 0.0001LUX/F1.2
Horizontal Resolutions AHD:2 million pixels / 1080P
Frequency 50Hz/60Hz
Gamma 0.45
Shutter Speed 1/50~1/100000s/1/60~1/100000s
Frame Rate 1080P@25fps/1080P@30fps
S/N Ratio >46dB
Video output 1.0Vp – p75Ω
Working temperature -30 ~ +70℃, Relative humidity 95% MAX
Power Supply DC12V±10% ; 170MA±10%
Power 3W
Electric current 250MA

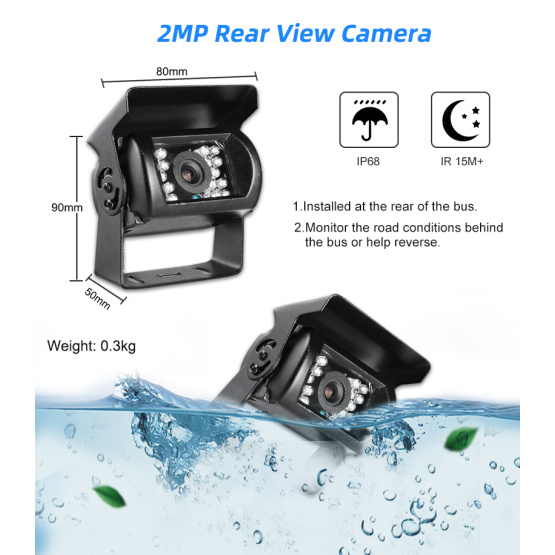

Dimension 93MM*50MM*80MM
Weight N.W/G.W  0.5kg/0.7kg
IR distance 12m
Audio Optional
Visual Angle 90°+

Vehicle Surveillance Cameras, Car CCTV Camera, Vehicle Camera, Car Surveillance Camera, Car CCTV, Vehicle CCTV pictures show:

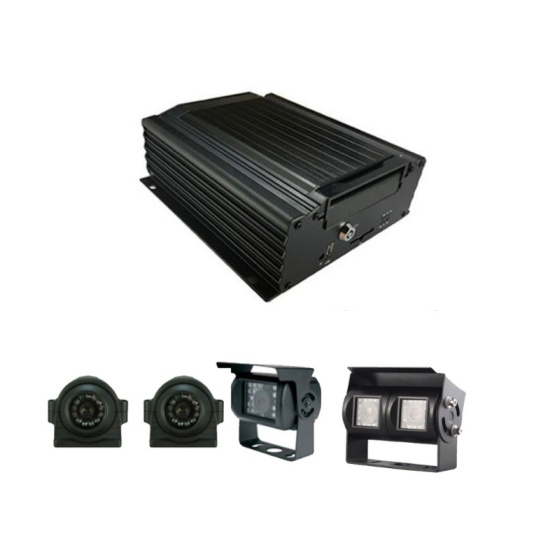

Taxi camera system
