Vehicle Backup Side View Camera 12V/24V

Min. Order: 10 Piece/Pieces

Basic Info

Model No.: SA-A20M07K

Shell Material: Alloy

Display Type: Reverse Image

Applicable Model: Truck Bus Trailer etc

Waterproof level: IP68

Voltage: DV12-24V

Function: Dustproof, waterproof, explosion-proof, full-color night vision

Input signal: AHD

Filming angle: 120°

Pixel: 200W

Lens: Dual lens

Additional Info

Packaging: Gift Box

Productivity: 100000 Per week

Brand: Sanan

Transportation: Ocean,Land,Air,By express

Place of Origin: Shenzhen,China

Supply Ability: 200000

Certificate: ISO9001

HS Code: 8523501390

Port: She Kou,Yian Tian

Product Description

Do car cameras record all the time?

The on-board camera can monitor 24 hours a day. There are two ways to view images with a car camera: one is to view the image through a computer connected to the camera; the other is to view the image through the driving recorder in the car, and you can view the image in the car through a mobile phone program.
The functions of the on-board camera are as follows:
1. Provide reliable evidence for the analysis and judgment of traffic accidents;
2. It is convenient for drivers and passengers to check the situation in the car;
3. Provide a basis for handling problems such as passenger disputes, lost property finding, robbery and theft prevention in the car;
4. Provide the monitoring of the environment inside and outside the carriage to provide safety guarantee for the driving of the vehicle.

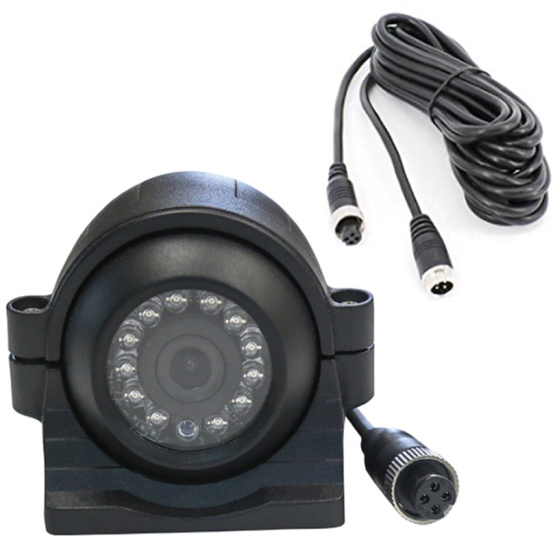

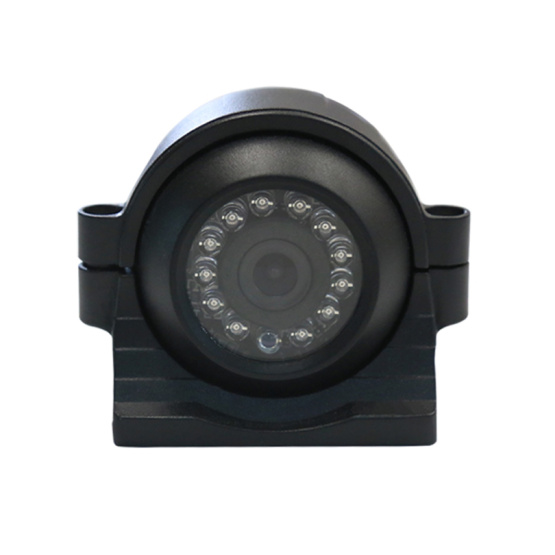

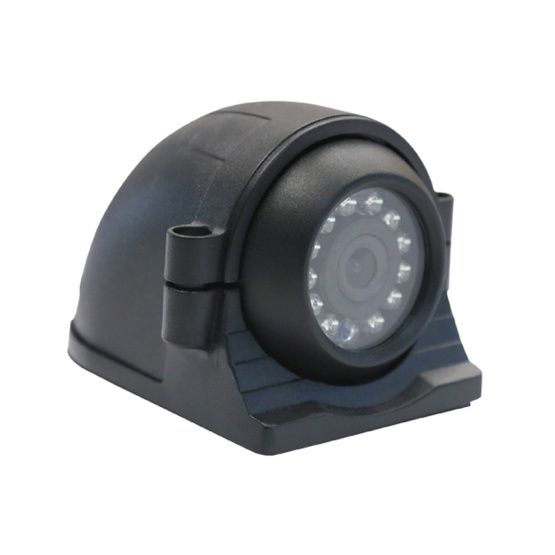

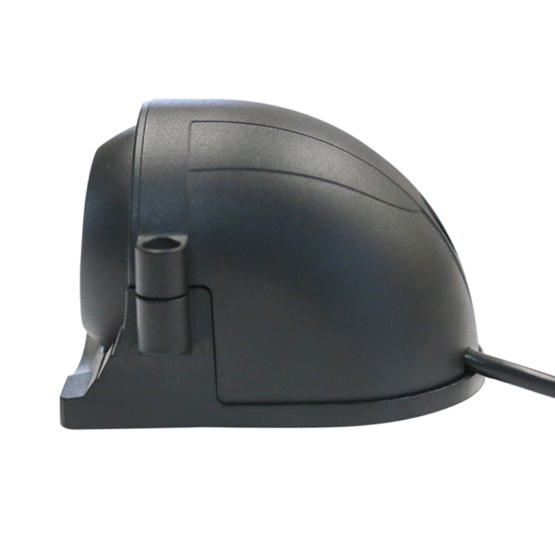

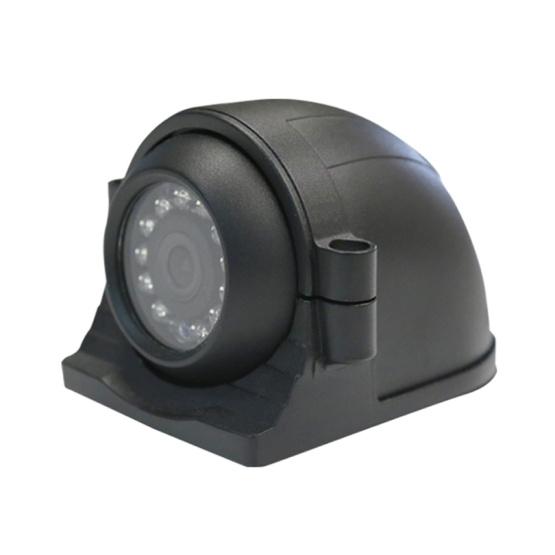

Vehicle System Solution Specs:

Zinc alloy housing , very sturdy , last long time .
• 12pcs LED light , night vision distance 8~15m .
• Camera can be adjusted up and down , maximize view angle .
• Horizontal view angle 120°, wider visual angle ,easy to back your car .
• Waterproof , anti-shock , raining , rough road ...etc , camera work well.
• High resolution , day or night , imaging very clear.
• Suitable for models: buses, trucks, school buses, engineering vehicles, urban sanitation vehicles, etc.

Ps4 Jpg

Vehicle Surveillance Cameras, Car CCTV Camera, Vehicle Camera, Car Surveillance Camera, Car CCTV, Vehicle CCTV specifications:

Image Sensor 1/3" CMOS
Horizontal Resolution 1080P
IR LED 12pcs Φ5mm IR LED 850nm
IR Distance 10m-15m
Lens 2.5mm/2.8mm/3.6mm options
Scanning System PAL/NTSC Options
Minimum Illumination: 0Lux/IR On
S/N Ratio ≥48dB (AGC OFF)
Video Out Composite Signal (1.0Vp-p, 75Ω), BNC
Electronic Shutter Time Auto:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec
Operation  Temperature -10°C~ +50°CRH95% Max
Sync System Internal Synchronization
White Balance Auto
Power Supply DC 12-24V
N.W: 0.25kg

2 Jpg

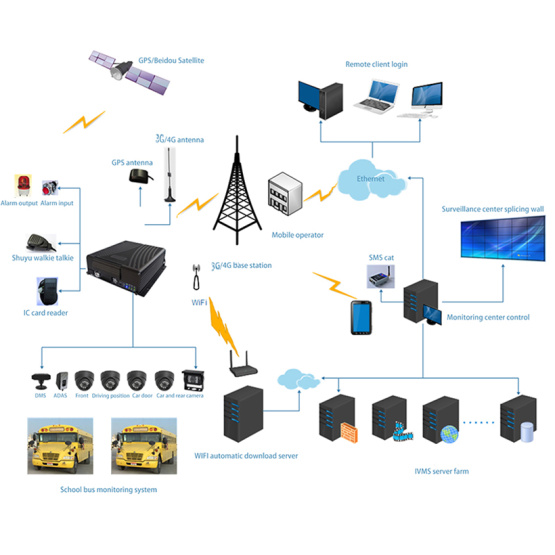

Purpose Of Vehicle Monitoring System
